Preliminary notes:

The code below assumes that

• The primary IV (variable X) is continuous or dichotomous.
• Any moderators (variables W, V, Q, Z) are continuous, though the only adaptation required to handle dichotomous moderators is in the MODEL CONSTRAINT: and loop plot code - an example of how to do this is given in model 1b. Handling categorical moderators with > 2 categories is demonstrated in model 1d.
• Any mediators (variable M, or M1, M2, etc.) are continuous and satisfy the assumptions of standard multiple regression. An example of how to handle a dichotomous mediator is given in model 4c.
• The DV (variable Y) is continuous and satisfies the assumptions of standard multiple regression - an example of how to handle a dichotomous DV is given in model 1e (i.e. a moderated logistic regression) and in model 4d (i.e. an indirect effect in a logistic regression).

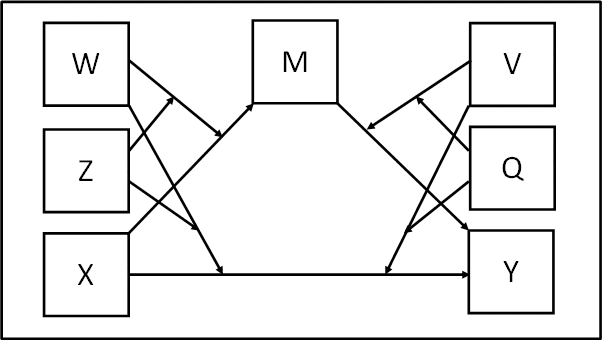

Model Diagram:

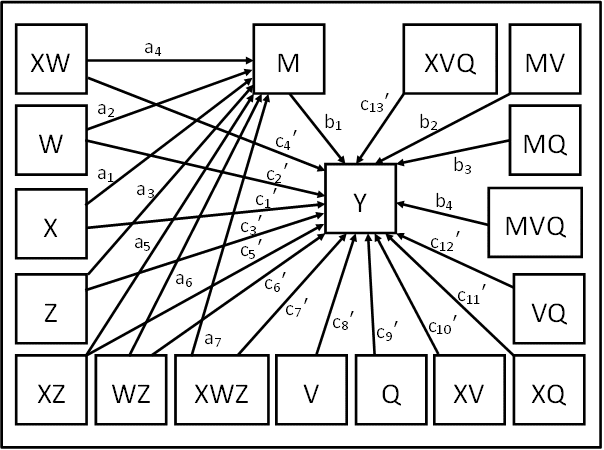

Statistical Diagram:

Model Equation(s):

Y = b0 + b1M + b2MV + b3MQ + b4MVQ + c1'X + c2'W + c3'Z + c4'XW + c5'XZ + c6'WZ + c7'XWZ + c8'V + c9'Q + c10'XV + c11'XQ + c12'VQ + c13'XVQ
M = a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ

Algebra to calculate indirect and/or conditional effects by writing model as Y = a + bX:

Y = b0 + b1M + b2MV + b3MQ + b4MVQ + c1'X + c2'W + c3'Z + c4'XW + c5'XZ + c6'WZ + c7'XWZ + c8'V + c9'Q + c10'XV + c11'XQ + c12'VQ + c13'XVQ
M = a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ

Hence... substituting in equation for M

Y = b0 + b1(a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ) + b2(a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ)V + b3(a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ)Q + b4(a0 + a1X + a2W + a3Z + a4XW + a5XZ + a6WZ + a7XWZ)VQ + c1'X + c2'W + c3'Z + c4'XW + c5'XZ + c6'WZ + c7'XWZ + c8'V + c9'Q + c10'XV + c11'XQ + c12'VQ + c13'XVQ

Hence... multiplying out brackets

Y = b0 + a0b1 + a1b1X + a2b1W + a3b1Z + a4b1XW + a5b1XZ + a6b1WZ + a7b1XWZ + a0b2V + a1b2XV + a2b2WV + a3b2ZV + a4b2XWV + a5b2XZV + a6b2WZV + a7b2XWZV + a0b3Q + a1b3XQ + a2b3WQ + a3b3ZQ + a4b3XWQ + a5b3XZQ + a6b3WZQ + a7b3XWZQ + a0b4VQ + a1b4XVQ + a2b4WVQ + a3b4ZVQ + a4b4XWVQ + a5b4XZVQ + a6b4WZVQ + a7b4XWZVQ + c1'X + c2'W + c3'Z + c4'XW + c5'XZ + c6'WZ + c7'XWZ + c8'V + c9'Q + c10'XV + c11'XQ + c12'VQ + c13'XVQ

Hence... grouping terms into form Y = a + bX

Y = (b0 + a0b1 + a2b1W + a3b1Z + a6b1WZ + a0b2V + a2b2WV + a3b2ZV + a6b2WZV + a0b3Q + a2b3WQ + a3b3ZQ + a6b3WZQ + a0b4VQ + a2b4WVQ + a3b4ZVQ + a6b4WZVQ + c2'W + c3'Z + c6'WZ + c8'V + c9'Q + c12'VQ) + (a1b1 + a4b1W + a5b1Z + a7b1WZ + a1b2V + a4b2WV + a5b2ZV + a7b2WZV + a1b3Q + a4b3WQ + a5b3ZQ + a7b3WZQ + a1b4VQ + a4b4WVQ + a5b4ZVQ + a7b4WZVQ + c1' + c4'W + c5'Z + c7'WZ + c10'V + c11'Q + c13'VQ)X

Hence...

One indirect effect(s) of X on Y, conditional on W, Z, V, Q:

a1b1 + a4b1W + a5b1Z + a7b1WZ + a1b2V + a4b2WV + a5b2ZV + a7b2WZV + a1b3Q + a4b3WQ + a5b3ZQ + a7b3WZQ + a1b4VQ + a4b4WVQ + a5b4ZVQ + a7b4WZVQ = (a1 + a4W + a5Z + a7WZ)(b1 + b2V + b3Q + b4VQ)

One direct effect of X on Y, conditional on W, Z, V, Q:

c1' + c4'W + c5'Z + c7'WZ + c10'V + c11'Q + c13'VQ

Mplus code for the model:

! Predictor variable - X
! Mediator variable(s) – M
! Moderator variable(s) – W, Z, V, Q
! Outcome variable - Y

USEVARIABLES = X M W Z V Q Y XW XZ WZ XV XQ VQ MV MQ XWZ XVQ MVQ;

! Create interaction terms
! Note that they have to be placed at end of USEVARIABLES subcommand above

DEFINE:
   MQ = M*Q;
   MV = M*V;
   XW = X*W;
   XZ = X*Z;
   XQ = X*Q;
   XV = X*V;
   WZ = W*Z;
   VQ = V*Q;
   MVQ = M*V*Q;
   XWZ = X*W*Z;
   XVQ = X*V*Q;

ANALYSIS:
   TYPE = GENERAL;
   ESTIMATOR = ML;
   BOOTSTRAP = 10000;

! In model statement name each path and intercept using parentheses

MODEL:
   [Y] (b0);
   Y ON M (b1);
   Y ON MV (b2);
   Y ON MQ (b3);
   Y ON MVQ (b4);

   Y ON X (cdash1);
   Y ON W (cdash2);
   Y ON Z (cdash3);
   Y ON XW (cdash4);
   Y ON XZ (cdash5);
   Y ON WZ (cdash6);
   Y ON XWZ (cdash7);
   Y ON V (cdash8);
   Y ON Q (cdash9);
   Y ON XV (cdash10);
   Y ON XQ (cdash11);
   Y ON VQ (cdash12);
   Y ON XVQ (cdash13);

   [M] (a0);
   M ON X (a1);
   M ON W (a2);
   M ON Z (a3);
   M ON XW (a4);
   M ON XZ (a5);
   M ON WZ (a6);
   M ON XWZ (a7);

! Use model constraint subcommand to test conditional indirect effects
! You need to pick low, medium and high moderator values for W, Z, V, Q
! for example, of 1 SD below mean, mean, 1 SD above mean

! 4 moderators, 3 values for each, gives 81 combinations
! arbitrary naming convention for conditional indirect and total effects used below:
! HHML = high value of W, high value of Z, medium value of V and low value of Q.

MODEL CONSTRAINT:
    NEW(LOW_W MED_W HIGH_W LOW_Z MED_Z HIGH_Z LOW_V MED_V HIGH_V LOW_Q MED_Q HIGH_Q
    ILLLL IMLLL IHLLL ILMLL IMMLL IHMLL ILHLL IMHLL IHHLL
    ILLML IMLML IHLML ILMML IMMML IHMML ILHML IMHML IHHML
    ILLHL IMLHL IHLHL ILMHL IMMHL IHMHL ILHHL IMHHL IHHHL
    ILLLM IMLLM IHLLM ILMLM IMMLM IHMLM ILHLM IMHLM IHHLM
    ILLMM IMLMM IHLMM ILMMM IMMMM IHMMM ILHMM IMHMM IHHMM
    ILLHM IMLHM IHLHM ILMHM IMMHM IHMHM ILHHM IMHHM IHHHM
    ILLLH IMLLH IHLLH ILMLH IMMLH IHMLH ILHLH IMHLH IHHLH
    ILLMH IMLMH IHLMH ILMMH IMMMH IHMMH ILHMH IMHMH IHHMH
    ILLHH IMLHH IHLHH ILMHH IMMHH IHMHH ILHHH IMHHH IHHHH
    DLLLL DMLLL DHLLL DLMLL DMMLL DHMLL DLHLL DMHLL DHHLL
    DLLML DMLML DHLML DLMML DMMML DHMML DLHML DMHML DHHML
    DLLHL DMLHL DHLHL DLMHL DMMHL DHMHL DLHHL DMHHL DHHHL
    DLLLM DMLLM DHLLM DLMLM DMMLM DHMLM DLHLM DMHLM DHHLM
    DLLMM DMLMM DHLMM DLMMM DMMMM DHMMM DLHMM DMHMM DHHMM
    DLLHM DMLHM DHLHM DLMHM DMMHM DHMHM DLHHM DMHHM DHHHM
    DLLLH DMLLH DHLLH DLMLH DMMLH DHMLH DLHLH DMHLH DHHLH
    DLLMH DMLMH DHLMH DLMMH DMMMH DHMMH DLHMH DMHMH DHHMH
    DLLHH DMLHH DHLHH DLMHH DMMHH DHMHH DLHHH DMHHH DHHHH
    TLLLL TMLLL THLLL TLMLL TMMLL THMLL TLHLL TMHLL THHLL
    TLLML TMLML THLML TLMML TMMML THMML TLHML TMHML THHML
    TLLHL TMLHL THLHL TLMHL TMMHL THMHL TLHHL TMHHL THHHL
    TLLLM TMLLM THLLM TLMLM TMMLM THMLM TLHLM TMHLM THHLM
    TLLMM TMLMM THLMM TLMMM TMMMM THMMM TLHMM TMHMM THHMM
    TLLHM TMLHM THLHM TLMHM TMMHM THMHM TLHHM TMHHM THHHM
    TLLLH TMLLH THLLH TLMLH TMMLH THMLH TLHLH TMHLH THHLH
    TLLMH TMLMH THLMH TLMMH TMMMH THMMH TLHMH TMHMH THHMH
    TLLHH TMLHH THLHH TLMHH TMMHH THMHH TLHHH TMHHH THHHH);

    LOW_W = #LOWW;   ! replace #LOWW in the code with your chosen low value of W
    MED_W = #MEDW;   ! replace #MEDW in the code with your chosen medium value of W
    HIGH_W = #HIGHW;   ! replace #HIGHW in the code with your chosen high value of W

    LOW_Z = #LOWZ;   ! replace #LOWZ in the code with your chosen low value of Z
    MED_Z = #MEDZ;   ! replace #MEDZ in the code with your chosen medium value of Z
    HIGH_Z = #HIGHZ;   ! replace #HIGHZ in the code with your chosen high value of Z

    LOW_V = #LOWV;   ! replace #LOWV in the code with your chosen low value of V
    MED_V = #MEDV;   ! replace #MEDV in the code with your chosen medium value of V
    HIGH_V = #HIGHV;   ! replace #HIGHV in the code with your chosen high value of V

    LOW_Q = #LOWQ;   ! replace #LOWQ in the code with your chosen low value of Q
    MED_Q = #MEDQ;   ! replace #MEDQ in the code with your chosen medium value of Q
    HIGH_Q = #HIGHQ;   ! replace #HIGHQ in the code with your chosen high value of Q

! Calc conditional indirect effects for each combination of moderator values

    ILLLL = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*LOW_W*LOW_Z*LOW_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*LOW_W*LOW_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*LOW_W*LOW_V*LOW_Q + a5*b4*LOW_Z*LOW_V*LOW_Q +
     a7*b4*LOW_W*LOW_Z*LOW_V*LOW_Q;
    IMLLL = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*MED_W*LOW_Z*LOW_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*MED_W*LOW_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*MED_W*LOW_V*LOW_Q + a5*b4*LOW_Z*LOW_V*LOW_Q +
     a7*b4*MED_W*LOW_Z*LOW_V*LOW_Q;
    IHLLL = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*HIGH_W*LOW_Z*LOW_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*HIGH_W*LOW_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*HIGH_W*LOW_V*LOW_Q + a5*b4*LOW_Z*LOW_V*LOW_Q +
     a7*b4*HIGH_W*LOW_Z*LOW_V*LOW_Q;

    ILMLL = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*LOW_W*MED_Z*LOW_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*LOW_W*MED_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*LOW_W*LOW_V*LOW_Q + a5*b4*MED_Z*LOW_V*LOW_Q +
     a7*b4*LOW_W*MED_Z*LOW_V*LOW_Q;
    IMMLL = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*MED_W*MED_Z*LOW_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*MED_W*MED_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*MED_W*LOW_V*LOW_Q + a5*b4*MED_Z*LOW_V*LOW_Q +
     a7*b4*MED_W*MED_Z*LOW_V*LOW_Q;
    IHMLL = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*HIGH_W*MED_Z*LOW_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*HIGH_W*MED_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*HIGH_W*LOW_V*LOW_Q + a5*b4*MED_Z*LOW_V*LOW_Q +
     a7*b4*HIGH_W*MED_Z*LOW_V*LOW_Q;

    ILHLL = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*LOW_W*HIGH_Z*LOW_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*LOW_W*HIGH_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*LOW_W*LOW_V*LOW_Q + a5*b4*HIGH_Z*LOW_V*LOW_Q +
     a7*b4*LOW_W*HIGH_Z*LOW_V*LOW_Q;
    IMHLL = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*MED_W*HIGH_Z*LOW_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*MED_W*HIGH_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*MED_W*LOW_V*LOW_Q + a5*b4*HIGH_Z*LOW_V*LOW_Q +
     a7*b4*MED_W*HIGH_Z*LOW_V*LOW_Q;
    IHHLL = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*HIGH_W*HIGH_Z*LOW_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*HIGH_W*HIGH_Z*LOW_Q + a1*b4*LOW_V*LOW_Q +
     a4*b4*HIGH_W*LOW_V*LOW_Q + a5*b4*HIGH_Z*LOW_V*LOW_Q +
     a7*b4*HIGH_W*HIGH_Z*LOW_V*LOW_Q;

    ILLML = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*LOW_W*LOW_Z*MED_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*LOW_W*LOW_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*LOW_W*MED_V*LOW_Q + a5*b4*LOW_Z*MED_V*LOW_Q +
     a7*b4*LOW_W*LOW_Z*MED_V*LOW_Q;
    IMLML = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*MED_W*LOW_Z*MED_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*MED_W*LOW_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*MED_W*MED_V*LOW_Q + a5*b4*LOW_Z*MED_V*LOW_Q +
     a7*b4*MED_W*LOW_Z*MED_V*LOW_Q;
    IHLML = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*HIGH_W*LOW_Z*MED_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*HIGH_W*LOW_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*HIGH_W*MED_V*LOW_Q + a5*b4*LOW_Z*MED_V*LOW_Q +
     a7*b4*HIGH_W*LOW_Z*MED_V*LOW_Q;

    ILMML = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*LOW_W*MED_Z*MED_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*LOW_W*MED_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*LOW_W*MED_V*LOW_Q + a5*b4*MED_Z*MED_V*LOW_Q +
     a7*b4*LOW_W*MED_Z*MED_V*LOW_Q;
    IMMML = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*MED_W*MED_Z*MED_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*MED_W*MED_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*MED_W*MED_V*LOW_Q + a5*b4*MED_Z*MED_V*LOW_Q +
     a7*b4*MED_W*MED_Z*MED_V*LOW_Q;
    IHMML = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*HIGH_W*MED_Z*MED_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*HIGH_W*MED_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*HIGH_W*MED_V*LOW_Q + a5*b4*MED_Z*MED_V*LOW_Q +
     a7*b4*HIGH_W*MED_Z*MED_V*LOW_Q;

    ILHML = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*LOW_W*HIGH_Z*MED_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*LOW_W*HIGH_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*LOW_W*MED_V*LOW_Q + a5*b4*HIGH_Z*MED_V*LOW_Q +
     a7*b4*LOW_W*HIGH_Z*MED_V*LOW_Q;
    IMHML = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*MED_W*HIGH_Z*MED_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*MED_W*HIGH_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*MED_W*MED_V*LOW_Q + a5*b4*HIGH_Z*MED_V*LOW_Q +
     a7*b4*MED_W*HIGH_Z*MED_V*LOW_Q;
    IHHML = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*HIGH_W*HIGH_Z*MED_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*HIGH_W*HIGH_Z*LOW_Q + a1*b4*MED_V*LOW_Q +
     a4*b4*HIGH_W*MED_V*LOW_Q + a5*b4*HIGH_Z*MED_V*LOW_Q +
     a7*b4*HIGH_W*HIGH_Z*MED_V*LOW_Q;

    ILLHL = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*LOW_W*LOW_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*LOW_W*LOW_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*LOW_W*HIGH_V*LOW_Q + a5*b4*LOW_Z*HIGH_V*LOW_Q +
     a7*b4*LOW_W*LOW_Z*HIGH_V*LOW_Q;
    IMLHL = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*MED_W*LOW_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*MED_W*LOW_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*MED_W*HIGH_V*LOW_Q + a5*b4*LOW_Z*HIGH_V*LOW_Q +
     a7*b4*MED_W*LOW_Z*HIGH_V*LOW_Q;
    IHLHL = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*HIGH_W*LOW_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*LOW_Z*LOW_Q + a7*b3*HIGH_W*LOW_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*HIGH_W*HIGH_V*LOW_Q + a5*b4*LOW_Z*HIGH_V*LOW_Q +
     a7*b4*HIGH_W*LOW_Z*HIGH_V*LOW_Q;

    ILMHL = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*LOW_W*MED_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*LOW_W*MED_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*LOW_W*HIGH_V*LOW_Q + a5*b4*MED_Z*HIGH_V*LOW_Q +
     a7*b4*LOW_W*MED_Z*HIGH_V*LOW_Q;
    IMMHL = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*MED_W*MED_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*MED_W*MED_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*MED_W*HIGH_V*LOW_Q + a5*b4*MED_Z*HIGH_V*LOW_Q +
     a7*b4*MED_W*MED_Z*HIGH_V*LOW_Q;
    IHMHL = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*HIGH_W*MED_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*MED_Z*LOW_Q + a7*b3*HIGH_W*MED_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*HIGH_W*HIGH_V*LOW_Q + a5*b4*MED_Z*HIGH_V*LOW_Q +
     a7*b4*HIGH_W*MED_Z*HIGH_V*LOW_Q;

    ILHHL = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*LOW_W*HIGH_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*LOW_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*LOW_W*HIGH_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*LOW_W*HIGH_V*LOW_Q + a5*b4*HIGH_Z*HIGH_V*LOW_Q +
     a7*b4*LOW_W*HIGH_Z*HIGH_V*LOW_Q;
    IMHHL = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*MED_W*HIGH_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*MED_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*MED_W*HIGH_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*MED_W*HIGH_V*LOW_Q + a5*b4*HIGH_Z*HIGH_V*LOW_Q +
     a7*b4*MED_W*HIGH_Z*HIGH_V*LOW_Q;
    IHHHL = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*HIGH_W*HIGH_Z*HIGH_V + a1*b3*LOW_Q + a4*b3*HIGH_W*LOW_Q +
     a5*b3*HIGH_Z*LOW_Q + a7*b3*HIGH_W*HIGH_Z*LOW_Q + a1*b4*HIGH_V*LOW_Q +
     a4*b4*HIGH_W*HIGH_V*LOW_Q + a5*b4*HIGH_Z*HIGH_V*LOW_Q +
     a7*b4*HIGH_W*HIGH_Z*HIGH_V*LOW_Q;

    ILLLM = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*LOW_W*LOW_Z*LOW_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*LOW_W*LOW_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*LOW_W*LOW_V*MED_Q + a5*b4*LOW_Z*LOW_V*MED_Q +
     a7*b4*LOW_W*LOW_Z*LOW_V*MED_Q;
    IMLLM = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*MED_W*LOW_Z*LOW_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*MED_W*LOW_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*MED_W*LOW_V*MED_Q + a5*b4*LOW_Z*LOW_V*MED_Q +
     a7*b4*MED_W*LOW_Z*LOW_V*MED_Q;
    IHLLM = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*HIGH_W*LOW_Z*LOW_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*HIGH_W*LOW_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*HIGH_W*LOW_V*MED_Q + a5*b4*LOW_Z*LOW_V*MED_Q +
     a7*b4*HIGH_W*LOW_Z*LOW_V*MED_Q;

    ILMLM = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*LOW_W*MED_Z*LOW_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*LOW_W*MED_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*LOW_W*LOW_V*MED_Q + a5*b4*MED_Z*LOW_V*MED_Q +
     a7*b4*LOW_W*MED_Z*LOW_V*MED_Q;
    IMMLM = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*MED_W*MED_Z*LOW_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*MED_W*MED_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*MED_W*LOW_V*MED_Q + a5*b4*MED_Z*LOW_V*MED_Q +
     a7*b4*MED_W*MED_Z*LOW_V*MED_Q;
    IHMLM = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*HIGH_W*MED_Z*LOW_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*HIGH_W*MED_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*HIGH_W*LOW_V*MED_Q + a5*b4*MED_Z*LOW_V*MED_Q +
     a7*b4*HIGH_W*MED_Z*LOW_V*MED_Q;

    ILHLM = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*LOW_W*HIGH_Z*LOW_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*LOW_W*HIGH_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*LOW_W*LOW_V*MED_Q + a5*b4*HIGH_Z*LOW_V*MED_Q +
     a7*b4*LOW_W*HIGH_Z*LOW_V*MED_Q;
    IMHLM = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*MED_W*HIGH_Z*LOW_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*MED_W*HIGH_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*MED_W*LOW_V*MED_Q + a5*b4*HIGH_Z*LOW_V*MED_Q +
     a7*b4*MED_W*HIGH_Z*LOW_V*MED_Q;
    IHHLM = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*HIGH_W*HIGH_Z*LOW_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*HIGH_W*HIGH_Z*MED_Q + a1*b4*LOW_V*MED_Q +
     a4*b4*HIGH_W*LOW_V*MED_Q + a5*b4*HIGH_Z*LOW_V*MED_Q +
     a7*b4*HIGH_W*HIGH_Z*LOW_V*MED_Q;

    ILLMM = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*LOW_W*LOW_Z*MED_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*LOW_W*LOW_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*LOW_W*MED_V*MED_Q + a5*b4*LOW_Z*MED_V*MED_Q +
     a7*b4*LOW_W*LOW_Z*MED_V*MED_Q;
    IMLMM = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*MED_W*LOW_Z*MED_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*MED_W*LOW_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*MED_W*MED_V*MED_Q + a5*b4*LOW_Z*MED_V*MED_Q +
     a7*b4*MED_W*LOW_Z*MED_V*MED_Q;
    IHLMM = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*HIGH_W*LOW_Z*MED_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*HIGH_W*LOW_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*HIGH_W*MED_V*MED_Q + a5*b4*LOW_Z*MED_V*MED_Q +
     a7*b4*HIGH_W*LOW_Z*MED_V*MED_Q;

    ILMMM = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*LOW_W*MED_Z*MED_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*LOW_W*MED_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*LOW_W*MED_V*MED_Q + a5*b4*MED_Z*MED_V*MED_Q +
     a7*b4*LOW_W*MED_Z*MED_V*MED_Q;
    IMMMM = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*MED_W*MED_Z*MED_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*MED_W*MED_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*MED_W*MED_V*MED_Q + a5*b4*MED_Z*MED_V*MED_Q +
     a7*b4*MED_W*MED_Z*MED_V*MED_Q;
    IHMMM = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*HIGH_W*MED_Z*MED_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*HIGH_W*MED_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*HIGH_W*MED_V*MED_Q + a5*b4*MED_Z*MED_V*MED_Q +
     a7*b4*HIGH_W*MED_Z*MED_V*MED_Q;

    ILHMM = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*LOW_W*HIGH_Z*MED_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*LOW_W*HIGH_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*LOW_W*MED_V*MED_Q + a5*b4*HIGH_Z*MED_V*MED_Q +
     a7*b4*LOW_W*HIGH_Z*MED_V*MED_Q;
    IMHMM = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*MED_W*HIGH_Z*MED_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*MED_W*HIGH_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*MED_W*MED_V*MED_Q + a5*b4*HIGH_Z*MED_V*MED_Q +
     a7*b4*MED_W*HIGH_Z*MED_V*MED_Q;
    IHHMM = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*HIGH_W*HIGH_Z*MED_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*HIGH_W*HIGH_Z*MED_Q + a1*b4*MED_V*MED_Q +
     a4*b4*HIGH_W*MED_V*MED_Q + a5*b4*HIGH_Z*MED_V*MED_Q +
     a7*b4*HIGH_W*HIGH_Z*MED_V*MED_Q;

    ILLHM = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*LOW_W*LOW_Z*HIGH_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*LOW_W*LOW_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*LOW_W*HIGH_V*MED_Q + a5*b4*LOW_Z*HIGH_V*MED_Q +
     a7*b4*LOW_W*LOW_Z*HIGH_V*MED_Q;
    IMLHM = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*MED_W*LOW_Z*HIGH_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*MED_W*LOW_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*MED_W*HIGH_V*MED_Q + a5*b4*LOW_Z*HIGH_V*MED_Q +
     a7*b4*MED_W*LOW_Z*HIGH_V*MED_Q;
    IHLHM = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*HIGH_W*LOW_Z*HIGH_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*LOW_Z*MED_Q + a7*b3*HIGH_W*LOW_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*HIGH_W*HIGH_V*MED_Q + a5*b4*LOW_Z*HIGH_V*MED_Q +
     a7*b4*HIGH_W*LOW_Z*HIGH_V*MED_Q;

    ILMHM = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*LOW_W*MED_Z*HIGH_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*LOW_W*MED_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*LOW_W*HIGH_V*MED_Q + a5*b4*MED_Z*HIGH_V*MED_Q +
     a7*b4*LOW_W*MED_Z*HIGH_V*MED_Q;
    IMMHM = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*MED_W*MED_Z*HIGH_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*MED_W*MED_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*MED_W*HIGH_V*MED_Q + a5*b4*MED_Z*HIGH_V*MED_Q +
     a7*b4*MED_W*MED_Z*HIGH_V*MED_Q;
    IHMHM = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*HIGH_W*MED_Z*HIGH_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*MED_Z*MED_Q + a7*b3*HIGH_W*MED_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*HIGH_W*HIGH_V*MED_Q + a5*b4*MED_Z*HIGH_V*MED_Q +
     a7*b4*HIGH_W*MED_Z*HIGH_V*MED_Q;

    ILHHM = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*LOW_W*HIGH_Z*HIGH_V + a1*b3*MED_Q + a4*b3*LOW_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*LOW_W*HIGH_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*LOW_W*HIGH_V*MED_Q + a5*b4*HIGH_Z*HIGH_V*MED_Q +
     a7*b4*LOW_W*HIGH_Z*HIGH_V*MED_Q;
    IMHHM = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*MED_W*HIGH_Z*HIGH_V + a1*b3*MED_Q + a4*b3*MED_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*MED_W*HIGH_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*MED_W*HIGH_V*MED_Q + a5*b4*HIGH_Z*HIGH_V*MED_Q +
     a7*b4*MED_W*HIGH_Z*HIGH_V*MED_Q;
    IHHHM = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*HIGH_W*HIGH_Z*HIGH_V + a1*b3*MED_Q + a4*b3*HIGH_W*MED_Q +
     a5*b3*HIGH_Z*MED_Q + a7*b3*HIGH_W*HIGH_Z*MED_Q + a1*b4*HIGH_V*MED_Q +
     a4*b4*HIGH_W*HIGH_V*MED_Q + a5*b4*HIGH_Z*HIGH_V*MED_Q +
     a7*b4*HIGH_W*HIGH_Z*HIGH_V*MED_Q;

    ILLLH = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*LOW_W*LOW_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*LOW_W*LOW_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*LOW_W*LOW_V*HIGH_Q + a5*b4*LOW_Z*LOW_V*HIGH_Q +
     a7*b4*LOW_W*LOW_Z*LOW_V*HIGH_Q;
    IMLLH = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*MED_W*LOW_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*MED_W*LOW_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*MED_W*LOW_V*HIGH_Q + a5*b4*LOW_Z*LOW_V*HIGH_Q +
     a7*b4*MED_W*LOW_Z*LOW_V*HIGH_Q;
    IHLLH = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*LOW_Z*LOW_V +
     a7*b2*HIGH_W*LOW_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*HIGH_W*LOW_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*HIGH_W*LOW_V*HIGH_Q + a5*b4*LOW_Z*LOW_V*HIGH_Q +
     a7*b4*HIGH_W*LOW_Z*LOW_V*HIGH_Q;

    ILMLH = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*LOW_W*MED_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*LOW_W*MED_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*LOW_W*LOW_V*HIGH_Q + a5*b4*MED_Z*LOW_V*HIGH_Q +
     a7*b4*LOW_W*MED_Z*LOW_V*HIGH_Q;
    IMMLH = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*MED_W*MED_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*MED_W*MED_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*MED_W*LOW_V*HIGH_Q + a5*b4*MED_Z*LOW_V*HIGH_Q +
     a7*b4*MED_W*MED_Z*LOW_V*HIGH_Q;
    IHMLH = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*MED_Z*LOW_V +
     a7*b2*HIGH_W*MED_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*HIGH_W*MED_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*HIGH_W*LOW_V*HIGH_Q + a5*b4*MED_Z*LOW_V*HIGH_Q +
     a7*b4*HIGH_W*MED_Z*LOW_V*HIGH_Q;

    ILHLH = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*LOW_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*LOW_W*HIGH_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*LOW_W*HIGH_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*LOW_W*LOW_V*HIGH_Q + a5*b4*HIGH_Z*LOW_V*HIGH_Q +
     a7*b4*LOW_W*HIGH_Z*LOW_V*HIGH_Q;
    IMHLH = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*MED_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*MED_W*HIGH_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*MED_W*HIGH_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*MED_W*LOW_V*HIGH_Q + a5*b4*HIGH_Z*LOW_V*HIGH_Q +
     a7*b4*MED_W*HIGH_Z*LOW_V*HIGH_Q;
    IHHLH = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*LOW_V + a4*b2*HIGH_W*LOW_V + a5*b2*HIGH_Z*LOW_V +
     a7*b2*HIGH_W*HIGH_Z*LOW_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*HIGH_W*HIGH_Z*HIGH_Q + a1*b4*LOW_V*HIGH_Q +
     a4*b4*HIGH_W*LOW_V*HIGH_Q + a5*b4*HIGH_Z*LOW_V*HIGH_Q +
     a7*b4*HIGH_W*HIGH_Z*LOW_V*HIGH_Q;

    ILLMH = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*LOW_W*LOW_Z*MED_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*LOW_W*LOW_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*LOW_W*MED_V*HIGH_Q + a5*b4*LOW_Z*MED_V*HIGH_Q +
     a7*b4*LOW_W*LOW_Z*MED_V*HIGH_Q;
    IMLMH = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*MED_W*LOW_Z*MED_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*MED_W*LOW_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*MED_W*MED_V*HIGH_Q + a5*b4*LOW_Z*MED_V*HIGH_Q +
     a7*b4*MED_W*LOW_Z*MED_V*HIGH_Q;
    IHLMH = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*LOW_Z*MED_V +
     a7*b2*HIGH_W*LOW_Z*MED_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*HIGH_W*LOW_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*HIGH_W*MED_V*HIGH_Q + a5*b4*LOW_Z*MED_V*HIGH_Q +
     a7*b4*HIGH_W*LOW_Z*MED_V*HIGH_Q;

    ILMMH = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*LOW_W*MED_Z*MED_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*LOW_W*MED_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*LOW_W*MED_V*HIGH_Q + a5*b4*MED_Z*MED_V*HIGH_Q +
     a7*b4*LOW_W*MED_Z*MED_V*HIGH_Q;
    IMMMH = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*MED_W*MED_Z*MED_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*MED_W*MED_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*MED_W*MED_V*HIGH_Q + a5*b4*MED_Z*MED_V*HIGH_Q +
     a7*b4*MED_W*MED_Z*MED_V*HIGH_Q;
    IHMMH = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*MED_Z*MED_V +
     a7*b2*HIGH_W*MED_Z*MED_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*HIGH_W*MED_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*HIGH_W*MED_V*HIGH_Q + a5*b4*MED_Z*MED_V*HIGH_Q +
     a7*b4*HIGH_W*MED_Z*MED_V*HIGH_Q;

    ILHMH = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*LOW_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*LOW_W*HIGH_Z*MED_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*LOW_W*HIGH_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*LOW_W*MED_V*HIGH_Q + a5*b4*HIGH_Z*MED_V*HIGH_Q +
     a7*b4*LOW_W*HIGH_Z*MED_V*HIGH_Q;
    IMHMH = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*MED_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*MED_W*HIGH_Z*MED_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*MED_W*HIGH_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*MED_W*MED_V*HIGH_Q + a5*b4*HIGH_Z*MED_V*HIGH_Q +
     a7*b4*MED_W*HIGH_Z*MED_V*HIGH_Q;
    IHHMH = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*MED_V + a4*b2*HIGH_W*MED_V + a5*b2*HIGH_Z*MED_V +
     a7*b2*HIGH_W*HIGH_Z*MED_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*HIGH_W*HIGH_Z*HIGH_Q + a1*b4*MED_V*HIGH_Q +
     a4*b4*HIGH_W*MED_V*HIGH_Q + a5*b4*HIGH_Z*MED_V*HIGH_Q +
     a7*b4*HIGH_W*HIGH_Z*MED_V*HIGH_Q;

    ILLHH = a1*b1 + a4*b1*LOW_W + a5*b1*LOW_Z + a7*b1*LOW_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*LOW_W*LOW_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*LOW_W*LOW_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*LOW_W*HIGH_V*HIGH_Q + a5*b4*LOW_Z*HIGH_V*HIGH_Q +
     a7*b4*LOW_W*LOW_Z*HIGH_V*HIGH_Q;
    IMLHH = a1*b1 + a4*b1*MED_W + a5*b1*LOW_Z + a7*b1*MED_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*MED_W*LOW_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*MED_W*LOW_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*MED_W*HIGH_V*HIGH_Q + a5*b4*LOW_Z*HIGH_V*HIGH_Q +
     a7*b4*MED_W*LOW_Z*HIGH_V*HIGH_Q;
    IHLHH = a1*b1 + a4*b1*HIGH_W + a5*b1*LOW_Z + a7*b1*HIGH_W*LOW_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*LOW_Z*HIGH_V +
     a7*b2*HIGH_W*LOW_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*LOW_Z*HIGH_Q + a7*b3*HIGH_W*LOW_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*HIGH_W*HIGH_V*HIGH_Q + a5*b4*LOW_Z*HIGH_V*HIGH_Q +
     a7*b4*HIGH_W*LOW_Z*HIGH_V*HIGH_Q;

    ILMHH = a1*b1 + a4*b1*LOW_W + a5*b1*MED_Z + a7*b1*LOW_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*LOW_W*MED_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*LOW_W*MED_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*LOW_W*HIGH_V*HIGH_Q + a5*b4*MED_Z*HIGH_V*HIGH_Q +
     a7*b4*LOW_W*MED_Z*HIGH_V*HIGH_Q;
    IMMHH = a1*b1 + a4*b1*MED_W + a5*b1*MED_Z + a7*b1*MED_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*MED_W*MED_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*MED_W*MED_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*MED_W*HIGH_V*HIGH_Q + a5*b4*MED_Z*HIGH_V*HIGH_Q +
     a7*b4*MED_W*MED_Z*HIGH_V*HIGH_Q;
    IHMHH = a1*b1 + a4*b1*HIGH_W + a5*b1*MED_Z + a7*b1*HIGH_W*MED_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*MED_Z*HIGH_V +
     a7*b2*HIGH_W*MED_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*MED_Z*HIGH_Q + a7*b3*HIGH_W*MED_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*HIGH_W*HIGH_V*HIGH_Q + a5*b4*MED_Z*HIGH_V*HIGH_Q +
     a7*b4*HIGH_W*MED_Z*HIGH_V*HIGH_Q;

    ILHHH = a1*b1 + a4*b1*LOW_W + a5*b1*HIGH_Z + a7*b1*LOW_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*LOW_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*LOW_W*HIGH_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*LOW_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*LOW_W*HIGH_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*LOW_W*HIGH_V*HIGH_Q + a5*b4*HIGH_Z*HIGH_V*HIGH_Q +
     a7*b4*LOW_W*HIGH_Z*HIGH_V*HIGH_Q;
    IMHHH = a1*b1 + a4*b1*MED_W + a5*b1*HIGH_Z + a7*b1*MED_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*MED_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*MED_W*HIGH_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*MED_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*MED_W*HIGH_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*MED_W*HIGH_V*HIGH_Q + a5*b4*HIGH_Z*HIGH_V*HIGH_Q +
     a7*b4*MED_W*HIGH_Z*HIGH_V*HIGH_Q;
    IHHHH = a1*b1 + a4*b1*HIGH_W + a5*b1*HIGH_Z + a7*b1*HIGH_W*HIGH_Z +
     a1*b2*HIGH_V + a4*b2*HIGH_W*HIGH_V + a5*b2*HIGH_Z*HIGH_V +
     a7*b2*HIGH_W*HIGH_Z*HIGH_V + a1*b3*HIGH_Q + a4*b3*HIGH_W*HIGH_Q +
     a5*b3*HIGH_Z*HIGH_Q + a7*b3*HIGH_W*HIGH_Z*HIGH_Q + a1*b4*HIGH_V*HIGH_Q +
     a4*b4*HIGH_W*HIGH_V*HIGH_Q + a5*b4*HIGH_Z*HIGH_V*HIGH_Q +
     a7*b4*HIGH_W*HIGH_Z*HIGH_V*HIGH_Q;

! Calc conditional direct effects for each combination of moderator values

    DLLLL = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DMLLL = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DHLLL = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;

    DLMLL = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DMMLL = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DHMLL = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;

    DLHLL = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DMHLL = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;
    DHHLL = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*LOW_V + cdash11*LOW_Q + cdash13*LOW_V*LOW_Q;

    DLLML = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DMLML = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DHLML = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;

    DLMML = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DMMML = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DHMML = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;

    DLHML = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DMHML = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;
    DHHML = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*MED_V + cdash11*LOW_Q + cdash13*MED_V*LOW_Q;

    DLLHL = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DMLHL = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DHLHL = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;

    DLMHL = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DMMHL = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DHMHL = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;

    DLHHL = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DMHHL = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;
    DHHHL = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*LOW_Q + cdash13*HIGH_V*LOW_Q;

    DLLLM = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DMLLM = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DHLLM = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;

    DLMLM = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DMMLM = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DHMLM = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;

    DLHLM = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DMHLM = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;
    DHHLM = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*LOW_V + cdash11*MED_Q + cdash13*LOW_V*MED_Q;

    DLLMM = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DMLMM = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DHLMM = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;

    DLMMM = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DMMMM = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DHMMM = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;

    DLHMM = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DMHMM = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;
    DHHMM = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*MED_V + cdash11*MED_Q + cdash13*MED_V*MED_Q;

    DLLHM = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DMLHM = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DHLHM = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;

    DLMHM = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DMMHM = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DHMHM = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;

    DLHHM = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DMHHM = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;
    DHHHM = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*MED_Q + cdash13*HIGH_V*MED_Q;

    DLLLH = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DMLLH = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DHLLH = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;

    DLMLH = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DMMLH = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DHMLH = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;

    DLHLH = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DMHLH = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;
    DHHLH = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*LOW_V + cdash11*HIGH_Q + cdash13*LOW_V*HIGH_Q;

    DLLMH = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DMLMH = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DHLMH = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;

    DLMMH = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DMMMH = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DHMMH = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;

    DLHMH = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DMHMH = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;
    DHHMH = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*MED_V + cdash11*HIGH_Q + cdash13*MED_V*HIGH_Q;

    DLLHH = cdash1 + cdash4*LOW_W + cdash5*LOW_Z + cdash7*LOW_W*LOW_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DMLHH = cdash1 + cdash4*MED_W + cdash5*LOW_Z + cdash7*MED_W*LOW_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DHLHH = cdash1 + cdash4*HIGH_W + cdash5*LOW_Z + cdash7*HIGH_W*LOW_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;

    DLMHH = cdash1 + cdash4*LOW_W + cdash5*MED_Z + cdash7*LOW_W*MED_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DMMHH = cdash1 + cdash4*MED_W + cdash5*MED_Z + cdash7*MED_W*MED_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DHMHH = cdash1 + cdash4*HIGH_W + cdash5*MED_Z + cdash7*HIGH_W*MED_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;

    DLHHH = cdash1 + cdash4*LOW_W + cdash5*HIGH_Z + cdash7*LOW_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DMHHH = cdash1 + cdash4*MED_W + cdash5*HIGH_Z + cdash7*MED_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;
    DHHHH = cdash1 + cdash4*HIGH_W + cdash5*HIGH_Z + cdash7*HIGH_W*HIGH_Z +
     cdash10*HIGH_V + cdash11*HIGH_Q + cdash13*HIGH_V*HIGH_Q;

! Calc conditional total effects for each combination of moderator values

    TLLLL = ILLLL + DLLLL;
    TMLLL = IMLLL + DMLLL;
    THLLL = IHLLL + DHLLL;

    TLMLL = ILMLL + DLMLL;
    TMMLL = IMMLL + DMMLL;
    THMLL = IHMLL + DHMLL;

    TLHLL = ILHLL + DLHLL;
    TMHLL = IMHLL + DMHLL;
    THHLL = IHHLL + DHHLL;

    TLLML = ILLML + DLLML;
    TMLML = IMLML + DMLML;
    THLML = IHLML + DHLML;

    TLMML = ILMML + DLMML;
    TMMML = IMMML + DMMML;
    THMML = IHMML + DHMML;

    TLHML = ILHML + DLHML;
    TMHML = IMHML + DMHML;
    THHML = IHHML + DHHML;

    TLLHL = ILLHL + DLLHL;
    TMLHL = IMLHL + DMLHL;
    THLHL = IHLHL + DHLHL;

    TLMHL = ILMHL + DLMHL;
    TMMHL = IMMHL + DMMHL;
    THMHL = IHMHL + DHMHL;

    TLHHL = ILHHL + DLHHL;
    TMHHL = IMHHL + DMHHL;
    THHHL = IHHHL + DHHHL;

    TLLLM = ILLLM + DLLLM;
    TMLLM = IMLLM + DMLLM;
    THLLM = IHLLM + DHLLM;

    TLMLM = ILMLM + DLMLM;
    TMMLM = IMMLM + DMMLM;
    THMLM = IHMLM + DHMLM;

    TLHLM = ILHLM + DLHLM;
    TMHLM = IMHLM + DMHLM;
    THHLM = IHHLM + DHHLM;

    TLLMM = ILLMM + DLLMM;
    TMLMM = IMLMM + DMLMM;
    THLMM = IHLMM + DHLMM;

    TLMMM = ILMMM + DLMMM;
    TMMMM = IMMMM + DMMMM;
    THMMM = IHMMM + DHMMM;

    TLHMM = ILHMM + DLHMM;
    TMHMM = IMHMM + DMHMM;
    THHMM = IHHMM + DHHMM;

    TLLHM = ILLHM + DLLHM;
    TMLHM = IMLHM + DMLHM;
    THLHM = IHLHM + DHLHM;

    TLMHM = ILMHM + DLMHM;
    TMMHM = IMMHM + DMMHM;
    THMHM = IHMHM + DHMHM;

    TLHHM = ILHHM + DLHHM;
    TMHHM = IMHHM + DMHHM;
    THHHM = IHHHM + DHHHM;

    TLLLH = ILLLH + DLLLH;
    TMLLH = IMLLH + DMLLH;
    THLLH = IHLLH + DHLLH;

    TLMLH = ILMLH + DLMLH;
    TMMLH = IMMLH + DMMLH;
    THMLH = IHMLH + DHMLH;

    TLHLH = ILHLH + DLHLH;
    TMHLH = IMHLH + DMHLH;
    THHLH = IHHLH + DHHLH;

    TLLMH = ILLMH + DLLMH;
    TMLMH = IMLMH + DMLMH;
    THLMH = IHLMH + DHLMH;

    TLMMH = ILMMH + DLMMH;
    TMMMH = IMMMH + DMMMH;
    THMMH = IHMMH + DHMMH;

    TLHMH = ILHMH + DLHMH;
    TMHMH = IMHMH + DMHMH;
    THHMH = IHHMH + DHHMH;

    TLLHH = ILLHH + DLLHH;
    TMLHH = IMLHH + DMLHH;
    THLHH = IHLHH + DHLHH;

    TLMHH = ILMHH + DLMHH;
    TMMHH = IMMHH + DMMHH;
    THMHH = IHMHH + DHMHH;

    TLHHH = ILHHH + DLHHH;
    TMHHH = IMHHH + DMHHH;
    THHHH = IHHHH + DHHHH;

! Use loop plot to plot conditional indirect effect of X on Y for each combination of low, med, high moderator values
! Could be edited to show conditional direct or conditional total effects instead
! NOTE - values of 1,5 in LOOP() statement need to be replaced by
! logical min and max limits of predictor X used in analysis

    PLOT(PLLLL PMLLL PHLLL PLMLL PMMLL PHMLL PLHLL PMHLL PHHLL
    PLLML PMLML PHLML PLMML PMMML PHMML PLHML PMHML PHHML
    PLLHL PMLHL PHLHL PLMHL PMMHL PHMHL PLHHL PMHHL PHHHL
    PLLLM PMLLM PHLLM PLMLM PMMLM PHMLM PLHLM PMHLM PHHLM
    PLLMM PMLMM PHLMM PLMMM PMMMM PHMMM PLHMM PMHMM PHHMM
    PLLHM PMLHM PHLHM PLMHM PMMHM PHMHM PLHHM PMHHM PHHHM
    PLLLH PMLLH PHLLH PLMLH PMMLH PHMLH PLHLH PMHLH PHHLH
    PLLMH PMLMH PHLMH PLMMH PMMMH PHMMH PLHMH PMHMH PHHMH
    PLLHH PMLHH PHLHH PLMHH PMMHH PHMHH PLHHH PMHHH PHHHH);

    LOOP(XVAL,1,5,0.1);

    PLLLL = ILLLL*XVAL;
    PMLLL = IMLLL*XVAL;
    PHLLL = IHLLL*XVAL;

    PLMLL = ILMLL*XVAL;
    PMMLL = IMMLL*XVAL;
    PHMLL = IHMLL*XVAL;

    PLHLL = ILHLL*XVAL;
    PMHLL = IMHLL*XVAL;
    PHHLL = IHHLL*XVAL;

    PLLML = ILLML*XVAL;
    PMLML = IMLML*XVAL;
    PHLML = IHLML*XVAL;

    PLMML = ILMML*XVAL;
    PMMML = IMMML*XVAL;
    PHMML = IHMML*XVAL;

    PLHML = ILHML*XVAL;
    PMHML = IMHML*XVAL;
    PHHML = IHHML*XVAL;

    PLLHL = ILLHL*XVAL;
    PMLHL = IMLHL*XVAL;
    PHLHL = IHLHL*XVAL;

    PLMHL = ILMHL*XVAL;
    PMMHL = IMMHL*XVAL;
    PHMHL = IHMHL*XVAL;

    PLHHL = ILHHL*XVAL;
    PMHHL = IMHHL*XVAL;
    PHHHL = IHHHL*XVAL;

    PLLLM = ILLLM*XVAL;
    PMLLM = IMLLM*XVAL;
    PHLLM = IHLLM*XVAL;

    PLMLM = ILMLM*XVAL;
    PMMLM = IMMLM*XVAL;
    PHMLM = IHMLM*XVAL;

    PLHLM = ILHLM*XVAL;
    PMHLM = IMHLM*XVAL;
    PHHLM = IHHLM*XVAL;

    PLLMM = ILLMM*XVAL;
    PMLMM = IMLMM*XVAL;
    PHLMM = IHLMM*XVAL;

    PLMMM = ILMMM*XVAL;
    PMMMM = IMMMM*XVAL;
    PHMMM = IHMMM*XVAL;

    PLHMM = ILHMM*XVAL;
    PMHMM = IMHMM*XVAL;
    PHHMM = IHHMM*XVAL;

    PLLHM = ILLHM*XVAL;
    PMLHM = IMLHM*XVAL;
    PHLHM = IHLHM*XVAL;

    PLMHM = ILMHM*XVAL;
    PMMHM = IMMHM*XVAL;
    PHMHM = IHMHM*XVAL;

    PLHHM = ILHHM*XVAL;
    PMHHM = IMHHM*XVAL;
    PHHHM = IHHHM*XVAL;

    PLLLH = ILLLH*XVAL;
    PMLLH = IMLLH*XVAL;
    PHLLH = IHLLH*XVAL;

    PLMLH = ILMLH*XVAL;
    PMMLH = IMMLH*XVAL;
    PHMLH = IHMLH*XVAL;

    PLHLH = ILHLH*XVAL;
    PMHLH = IMHLH*XVAL;
    PHHLH = IHHLH*XVAL;

    PLLMH = ILLMH*XVAL;
    PMLMH = IMLMH*XVAL;
    PHLMH = IHLMH*XVAL;

    PLMMH = ILMMH*XVAL;
    PMMMH = IMMMH*XVAL;
    PHMMH = IHMMH*XVAL;

    PLHMH = ILHMH*XVAL;
    PMHMH = IMHMH*XVAL;
    PHHMH = IHHMH*XVAL;

    PLLHH = ILLHH*XVAL;
    PMLHH = IMLHH*XVAL;
    PHLHH = IHLHH*XVAL;

    PLMHH = ILMHH*XVAL;
    PMMHH = IMMHH*XVAL;
    PHMHH = IHMHH*XVAL;

    PLHHH = ILHHH*XVAL;
    PMHHH = IMHHH*XVAL;
    PHHHH = IHHHH*XVAL;

PLOT:
   TYPE = plot2;

OUTPUT:
   STAND CINT(bcbootstrap);

Return to Model Template index.

To cite this page and/or any code used, please use:
Stride C.B., Gardner S., Catley. N. & Thomas, F.(2015) 'Mplus code for the mediation, moderation, and moderated mediation model templates from Andrew Hayes' PROCESS analysis examples' , http://www.figureitout.org.uk
