## Mplus code for mediation, moderation, and moderated mediation models

Model 20 (latent variable version): 1 or more mediators, in parallel if multiple (example uses 1), 2 moderators, both moderating the Mediator- DV path, 3-way interaction, 1 also moderating direct IV-DV path

Example Variables: 1 latent predictor X measured by 4 observed variables X1-X4, 1 latent mediator M measured by 4 observed variables M1-M4, 2 latent moderators V and Q, each measured by sets of observed variables V1-V4 and Q1-Q4 respectively, 1 latent outcome Y measured by 4 observed variables Y1-Y4

Preliminary notes:

The code below assumes that

• The latent IV (factor X) is measured by continuous observed variables X1-X4.
• Any latent moderator(s) (factors W, V, Q, Z) are measured by continuous observed variables W1-W4, Z1-Z4, V1-V4, Q1-Q4 respectively.
• Any latent mediator(s) (factor M, or factors M1, M2, etc.) are measured by continuous observed variables M1-M4 or M1_1-M1-4, M2_1-M2_4 respectively.
• The latent outcome Y is measured by continuous observed variables Y1-Y4.

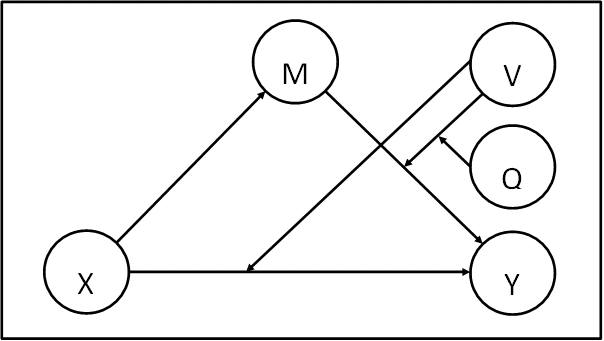

Model Diagram (factor indicator variables omitted for space/clarity reasons):

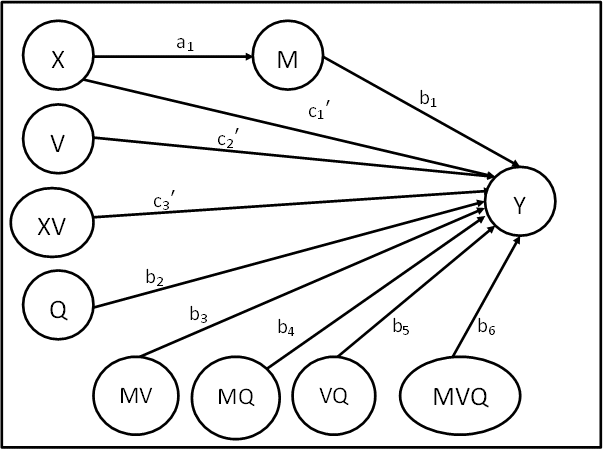

Statistical Diagram (factor indicator variables omitted for space/clarity reasons):

Model Equation(s):

Y = b0 + b1M + b2Q + b3MV + b4MQ + b5VQ + b6MVQ + c1'X + c2'V + c3'XV
M = a0 + a1X

Algebra to calculate indirect and/or conditional effects by writing model as Y = a + bX:

Y = b0 + b1M + b2Q + b3MV + b4MQ + b5VQ + b6MVQ + c1'X + c2'V + c3'XV
M = a0 + a1X

Hence... substituting in equation for M

Y = b0 + b1(a0 + a1X) + b2Q + b3(a0 + a1X)V + b4(a0 + a1X)Q + b5VQ + b6(a0 + a1X)VQ + c1'X + c2'V + c3'XV

Hence... multiplying out brackets

Y = b0 + a0b1 + a1b1X + b2Q + a0b3V + a1b3XV + a0b4Q + a1b4XQ + b5VQ + a0b6VQ + a1b6XVQ + c1'X + c2'V + c'3XV

Hence... grouping terms into form Y = a + bX

Y = (b0 + a0b1 + b2Q + a0b3V + a0b4Q + b5VQ + a0b6VQ + c2'V) + (a1b1 + a1b3V + a1b4Q + a1b6VQ + c1' + c3'V)X

Hence...

One indirect effect(s) of X on Y, conditional on V, Q:

a1b1 + a1b3V + a1b4Q + a1b6VQ = a1(b1 + b3V + b4Q + b6VQ)

One direct effect of X on Y, conditional on V:

c1' + c3'V

Mplus code for the model:

! Latent predictor variable X measured by X1-X4
! Latent mediator M measured by 4 observed variables M1-M4
! Latent moderators V and Q, each measured by sets of observed variables V1-V4 and Q1-Q4 respectively
! Latent outcome variable Y measured by Y1-Y4

USEVARIABLES = X1 X2 X3 X4 M1 M2 M3 M4
V1 V2 V3 V4 Q1 Q2 Q3 Q4
Y1 Y2 Y3 Y4;

ANALYSIS:
TYPE = GENERAL RANDOM;
ESTIMATOR = ML;
ALGORITHM = INTEGRATION;

! In model statement first state measurement model
! Then create any latent interactions required
! Then state structural model naming each path and intercept using parentheses

MODEL:

! Measurement model
! This makes these factors standardised
X BY X1 X2 X3 X4;
M BY M1 M2 M3 M4;
V BY V1* V2 V3 V4;
Q BY Q1* Q2 Q3 Q4;
Y BY Y1 Y2 Y3 Y4;

V@1;   Q@1;

! Create latent interactions
MV | M XWITH V;
MQ | M XWITH Q;
XV | X XWITH V;
VQ | V XWITH Q;
MVQ | M XWITH VQ;

! Fit structural model and name parameters
! Note that intercepts of M, Y are fixed = 0 since they are latent vars
! so no code to state and name them as parameters
Y ON M (b1);
Y ON Q (b2);
Y ON MV (b3);
Y ON MQ (b4);
Y ON VQ (b5);
Y ON MVQ (b6);

Y ON X (cdash1);
Y ON V (cdash2);
Y ON XV (cdash3);

M ON X (a1);

! Use model constraint subcommand to test conditional indirect effects
! You need to pick low, medium and high moderator values for V, Q
! for example, of 1 SD below mean, mean, 1 SD above mean

! 2 moderators, 3 values for each, gives 9 combinations
! arbitrary naming convention for conditional indirect and total effects used below:
! MEV_LOQ = medium value of V and low value of Q, etc.

MODEL CONSTRAINT:
NEW(LOW_V MED_V HIGH_V LOW_Q MED_Q HIGH_Q
ILOV_LOQ IMEV_LOQ IHIV_LOQ ILOV_MEQ IMEV_MEQ IHIV_MEQ
ILOV_HIQ IMEV_HIQ IHIV_HIQ
DIR_LOWV DIR_MEDV DIR_HIV
TLOV_LOQ TMEV_LOQ THIV_LOQ TLOV_MEQ TMEV_MEQ THIV_MEQ
TLOV_HIQ TMEV_HIQ THIV_HIQ);

LOW_V = -1;   ! -1 SD below mean value of V
MED_V = 0;   ! mean value of V
HIGH_V = 1;   ! +1 SD above mean value of V

LOW_Q = -1;   ! -1 SD below mean value of Q
MED_Q = 0;   ! mean value of Q
HIGH_Q = 1;   ! +1 SD above mean value of Q

! Calc conditional indirect effects for each combination of moderator values

ILOV_LOQ = a1*b1 + a1*b3*LOW_V + a1*b4*LOW_Q + a1*b6*LOW_V*LOW_Q;
IMEV_LOQ = a1*b1 + a1*b3*MED_V + a1*b4*LOW_Q + a1*b6*MED_V*LOW_Q;
IHIV_LOQ = a1*b1 + a1*b3*HIGH_V + a1*b4*LOW_Q + a1*b6*HIGH_V*LOW_Q;

ILOV_MEQ = a1*b1 + a1*b3*LOW_V + a1*b4*MED_Q + a1*b6*LOW_V*MED_Q;
IMEV_MEQ = a1*b1 + a1*b3*MED_V + a1*b4*MED_Q + a1*b6*MED_V*MED_Q;
IHIV_MEQ = a1*b1 + a1*b3*HIGH_V + a1*b4*MED_Q + a1*b6*HIGH_V*MED_Q;

ILOV_HIQ = a1*b1 + a1*b3*LOW_V + a1*b4*HIGH_Q + a1*b6*LOW_V*HIGH_Q;
IMEV_HIQ = a1*b1 + a1*b3*MED_V + a1*b4*HIGH_Q + a1*b6*MED_V*HIGH_Q;
IHIV_HIQ = a1*b1 + a1*b3*HIGH_V + a1*b4*HIGH_Q + a1*b6*HIGH_V*HIGH_Q;

! Calc conditional direct effects for each combination of moderator values

DIR_LOWV = cdash1 + cdash3*LOW_V;
DIR_MEDV = cdash1 + cdash3*MED_V;
DIR_HIV = cdash1 + cdash3*HIGH_V;

! Calc conditional total effects for each combination of moderator values

TLOV_LOQ = ILOV_LOQ + DIR_LOWV;
TMEV_LOQ = IMEV_LOQ + DIR_MEDV;
THIV_LOQ = IHIV_LOQ + DIR_HIV;

TLOV_MEQ = ILOV_MEQ + DIR_LOWV;
TMEV_MEQ = IMEV_MEQ + DIR_MEDV;
THIV_MEQ = IHIV_MEQ + DIR_HIV;

TLOV_HIQ = ILOV_HIQ + DIR_LOWV;
TMEV_HIQ = IMEV_HIQ + DIR_MEDV;
THIV_HIQ = IHIV_HIQ + DIR_HIV;

! Use loop plot to plot conditional indirect effect of X on Y for each combination of low, med, high moderator values
! Could be edited to show conditional direct or conditional total effects instead
! NOTE - values from -3 to 3 in LOOP() statement since
! X is factor with mean set at default of 0

PLOT(PLOV_LOQ PMEV_LOQ PHIV_LOQ PLOV_MEQ PMEV_MEQ PHIV_MEQ
PLOV_HIQ PMEV_HIQ PHIV_HIQ);

LOOP(XVAL,-3,3,0.1);

PLOV_LOQ = ILOV_LOQ*XVAL;
PMEV_LOQ = IMEV_LOQ*XVAL;
PHIV_LOQ = IHIV_LOQ*XVAL;

PLOV_MEQ = ILOV_MEQ*XVAL;
PMEV_MEQ = IMEV_MEQ*XVAL;
PHIV_MEQ = IHIV_MEQ*XVAL;

PLOV_HIQ = ILOV_HIQ*XVAL;
PMEV_HIQ = IMEV_HIQ*XVAL;
PHIV_HIQ = IHIV_HIQ*XVAL;

PLOT:
TYPE = plot2;

OUTPUT:
CINT;
